Is a Mesh WiFi network worth it?

A mesh WiFi network might be the nuclear option when it comes to getting rid of dead zones that a wireless router can’t reach. And it’s the most expensive.

Tenda is challenging the premise that you need to spend upwards of $200 for widespread WiFi coverage. The Nova Whole Home Mesh WiFi System

Advertisement

is among the least expensive kits on the market. It’s priced at about $120 for three nodes.

In my four weeks of testing the Nova (model: MW6), it lived up to its specs of covering roughly 6,000 square feet. That’s 1,000 square feet greater than the Netgear Orbi, and my top pick for 2017, Google Wi-Fi.

Tenda Nova MW6 Wave WiFi Speed Test

WiFi System Speed———- At 3ft Speed ——————At 15ft

Single Router——————-289 Mbps———————234 Mbps

Two Nodes————————114 Mbps-———————98 Mbps

Three Nodes ————-——-40 Mbps————————34 Mbps

What is a Mesh WiFi Network?

A mesh WiFi setup typically comes with three nodes, or units. The primary one is connected to your modem and functions like a wireless router. The difference is that a mesh router will find and connect to other corresponding units or nodes. Each unit is constantly seeking out the other, constantly communicating.

Advertisement

People often describe this as a so-called blanket of wireless coverage, but describing it that way isn’t exactly accurate. A mesh network can broadcast a WiFi signal to multiple floors in a home or across a backyard like a satellite. Before mesh WiFi networks came on the scene, the best way to expand a wireless signal was by using an access point or powerline adapter. Both options are still very effective. WiFi extenders became more popular because of their lower price.

The problem with a number of WiFi extenders is that it uses some of your bandwidth to transmit a signal, so you’re really not getting optimal performance. You may also have more than one network name using a WiFi extender.

Advertisement

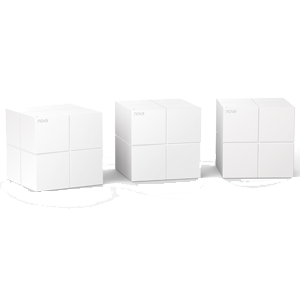

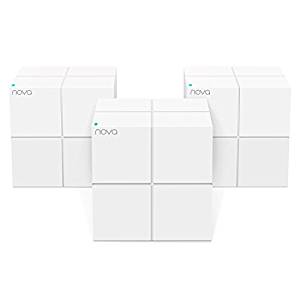

With the Nova, you have one network name, or SSID, regardless of whether you’re connecting to a 5GHz or 2.4GHz band. The Nova mesh WiFi network comes with a main router, and two other nodes or satellites. All three units are identical: a white cube slightly under four inches. Ventilation is out of sight on the bottom of the unit along with a reset button.

Nova Mesh WiFi Network overview and setup

Setting up the Nova mesh system was remarkably simple. It starts working once you plug in the first node and assign a name to the device through the Tenda smartphone app. The system requires a mobile device that runs at least on Android 4.0+ or iOS 8+.

Advertisement

To make my transition from a Netgear router easier, I assigned the Nova mesh Wifi the same username and password of the existing home network. That way, I don’t have to enter a new network name or password into all my devices.

When you plug in a second node, the Tenda app will find it, and notify you that another node is trying to join the network. Tenda recommends that a node is at least a couple of rooms away to the primary unit for a good connection.

Advertisement

A tiny light at the left corner of each unit indicates the quality of the WiFi signal. A solid blue means you have a solid WiFi connection. Yellow indicates a fair connection and magenta means poor. A red dot means there’s no connection. A fair or poor connection means you are probably too close to the primary unit.

When you first plug in a new node, you can see it on the smartphone app. You will have to approve the connection within the app. Cubes will be colored red when they’re not connected, and turn green once they are ready. While connecting the nodes, it took a couple of minutes for it to be recognized, especially when the node is separated by several rooms. Once the node was recognized, I never lost a connection to any of my devices.

Advertisement

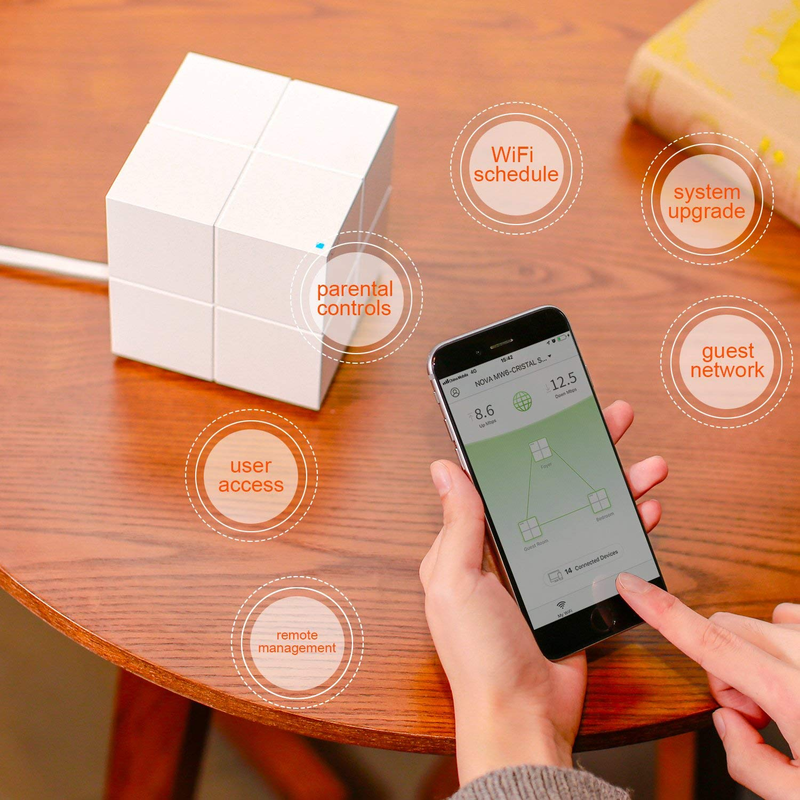

The Tenda smartphone app displays upload and downloads speeds, and the number of connected devices. Press on the number, and you’ll get a list of every device that’s currently connected to the mesh network.

Advertisement

Nova Mesh Network specs

Each Nova mesh unit has 2 Gigabit Ethernet ports on the bottom of the cube. Inside the cube, there is a pair of 3dBi dual band antennas. The mesh router supports 5GHz up to data rates up to 867Mbps, and 2.4GHz up to 300Mbps.

Advertisement

The Nova simultaneously broadcasts 5GHz and 2.4GHz signals and uses Beamforming, and Multi-User Multiple Input Multiple Output (MU-MIMO) technology. These two features are commonly seen on high-end routers and home networking units. MU-MIMO sends data to multiple devices simultaneously instead of in sequence (think of a checkout line at a grocery store). The Nova mesh WiFi system

uses “true mesh technology” or rather 802.11s, and supports 802.11v and 802.11r.

Advertisement

The settings tab within the Tenda smartphone app has parental controls, guest networking and even bridge networking.

Advertisement

  • Parental controls: Simple to establish. Under settings, you create a group name and just pick the device that you want to limit on your network list.
  • Guest Network: One click turns on the guest network, which has a unique SSID and WiFi password. You can easily change the password using the app. You can also give your guest network a limited shelf life. Choose a “validity period” for four or 8 hours. Or, you can leave it as “always valid.”
  • Connection Type: Setting up PPPoE, DHCP, a Static IP address or Bridge networking takes just one click under Internet settings.
  • Port Fowarding: Allow access to your IP address from outside your home network. Used for accessing things like security cameras.

Advertisement

Nova Whole Mesh Wifi Range and Performance

Many homes may only need to connect two Nova units unless you are trying to bring WiFi to multiple floors or a large property.

Advertisement

If I have a router connected to my modem, the far edges of my home is where WiFi signals are the weakest. When I switched out my router for one Nova unit, I was already getting a WiFi signal at full capacity in those near-dead zones.

After I placed a second unit in my bedroom at the furthest end of my home, the WiFi was going way past my home and down the street.

Advertisement

This isn’t particularly a bad thing. If you are looking to expand a strong WiFi signal into a backyard, placing a third Nova unit at one end of your home will give you even a stronger signal.

Backyards are very small where I live in Boston. So when I connected that third Nova unit in my home office, I ended up extending my WiFi signal into my neighborhood again. This time it was on the opposite end of my house. While going for a walk with my daughter, the WiFi signal on my Samsung Galaxy smartphone was still at full capacity roughly five houses away. Cruising through a website or two was no different than if I was at home.

Advertisement

Streaming is a priority in my home. So I fired up a TCL Roku TV in my living room and two TVs in bedrooms that had a Amazon Fire TV and a Roku Streaming Stick+. Generally I’m skeptical of live streaming without using an Ethernet cable. So unplugging my living room TV and NVIDIA Shield TV from my router was a leap of faith.

I didn’t encounter any dropped signals or lag while streaming live TV. Gaming was also quick and smooth on my latop, and also when I streamed them to the NVIDIA Shield. GeForce Now games also worked fine.

Advertisement

Areas of improvement

The one thing I didn’t like was my lack of ports. I needed to keep a wired connection to my HDHomeRun. That’s simply how that tuner works. Each Nova only has a single Ethernet port. I ended up buying a inexpensive 5-port Ethernet switch made by TP-Link so I could plug in more devices if I needed to.

Advertisement

The cube shaped design of the Nova looks stylish, or at least a lot better than a wireless router sitting in the middle of your living room. At the bottom of the unit, there’s about a two centimeter gap to make room for wiring.

This is a space for power, modem and Ethernet cables to exit. The gap felt a little too small. It wasn’t too much of a concern because the unit stayed flat on all four bezels, but it was noticeable during setup. I should also note that I didn’t use the flat Ethernet cable that was included in the kit. Either way, I wouldn’t consider this a major issue that would stop me from buying a Nova mesh kit. The Nova also lacked the ability to set up a private VPN connection that you can use at a coffee shop or somewhere else outside of your home. It’s one of the better features seen on Netgear routers. To most people, this probably won’t matter at all.

Advertisement

What’s the best mesh WiFi networking system in 2018?

It’s still early in the year as of this writing, yet a couple things are certain. The prices of mesh WiFi systems are falling. Companies like Nova and Huawei are entering the market, making high quality devices that are priced at nearly half of what a Netgear Orbi system cost two years ago.That’s good news for the consumerall around. Even the Google WiFi system is about $30 lower this year on sites like Amazon. If I were thinking of buying a new WiFi system, and wanted an easy setup then the Nova Mesh Whole Home Mesh WiFi System would be worth a look. It’s fast and provides solid coverage for multiple devices all over your house, and if you have a smaller yard, even beyond it.

Advertisement

Tenda MW6 Nova Wave – The Top Budget Mesh

Advertisement

Advertisement

Tenda is a relatively unknown networking equipment manufacturer from China. You might have seen their budget range home WiFi routers and wireless extenders in various sales and stores, but we didn’t have anything impressive to say about them up until now, to be honest. The Tenda Nova MW6 mesh system , however, is a whole different networking beast. It seems like a really well-made WiFi kit and it puts up a serious fight in the budget home mesh WiFi routers segment.

The Nova MW6 WiFi kit costs significantly less compared to most mesh router systems on this review list, but the network performance is not that far behind, especially considering the price. The Tenda mesh home wifi system comes in a pack of three separate router nodes. They are very well made white cubes. Each Tenda router has two Gigabit network ports on the back of it – one for internet connection and one for whole home network devices. There is no USB port but you can really expect one for the price of the router system.

Advertisement

The Tenda Nova MW6 mesh system has a dual-band wireless setup with a network speed of up to 1167Mbps. That translates to a max of 300Mbps on the 2.4Ghz WiFi band and up to 869Mbps on the 5Ghz band. Of course, these wireless speeds are theoretical and conneceted devices can rarely reach these maximums. MU-MIMO is present and working well, as well as a 3×3 network streams. Let’s take a look at what the Tenda MW6 can do in terms of WiFi routing performance:

Tenda Nova MW6 Wave WiFi Speed Test

WiFi System Speed———- At 3ft Speed ——————At 15ft

Single Router——————-289 Mbps———————234 Mbps

Two Nodes————————114 Mbps-———————98 Mbps

Three Nodes ————-——-40 Mbps————————34 Mbps

As you can see from the WiFi speed review above, the Tenda performance is not bad per se, but nothing to write home about either. It is clear that the Nova MW6 mesh wireless router has no dedicated backhaul network channel and it effectively cuts WiFi data transmission in half with each router node extension. Of course, home mesh networking doesn’t really work by extending each wireless signal in a daisy chain. It works by blanketing your whole home in WiFi signal. All mesh router nodes communicate with each other wirelessly and they work together to ensure the best home WiFi connection possible at all times. In most cases, you will not see a router extension of more than one mesh node away.

Advertisement

The Nova MW network and WiFi setup is pretty simple – it works pretty much like all the rest of the home mesh WiFi systems on this review. Once you connect it to your internet modem and it indicated that it is connected, you can use the Tenda WiFi app to connect and set up all the important network features.

Speaking of the Nova MW6 advanced networking features, there aren’t really many to talk about. Besides naming your wireless network and setting the password, the Tenda router is pretty basic overall. There is no network traffic prioritization or QoS. Port forwarding is present, although it is very basic. There are no network DMZ zones or anything like that. Bridge networking is not present either.

Advertisement

Overall, Tenda’s MW6 home mesh WiFi system is a very good router kit for a very good price. It rivals Google WiFi in terms of simplicity and easy of use. It offers very close wireless network performance as well for a very lucrative price. We really think that the Tenda MW6 Nova router is the best budget mesh wireless system. You can see the full Tenda Nova MW6 review here.

See the Video How it Works...
